Top selling CT PT tester fulfills requirements of CT PT manufacturers and field test engineers.

Which tests can be conducted this CT PT Tester?

 The Top selling CT PT tester conducts following tests:


    CT volt-ampere curve test,
    CT Ratio and phase test,
    PT volt-ampere curve test,
    PT ratio and phase test,
    Winding resistance measurement
    CT/PT Transformation ratio test and phase error test.
    CT polarity test


 Whether the user has to test manually or the test is automatic?

 The test is conducted automatically . The user has to just enter the test value according to the prompt and the test will be conducted automatically.

What is the maximum Test voltage output ?

 The maximum output voltage of the volt-ampere characteristic test is up to 2000 volts.

What is Maximum  current output:

Maximum current output is 5A

What is Maximum Power output ?

Maximum power output is 2000VA

How the test results are displayed?

The test results are displayed on a graphical LCD on the front panel

Is there in-built printer?

Yes there is in-built printer and test results can be printed any time.

Does it plot CT Volt -Ampere curve?

Yes. It also provides Knee point  V, Knee point  I and ALF.

Does the CT PT tester conduct polarity test?

Yes CT polarity test is conducted by a press of a key.


Does CT PT tester  Plots PT Volt ampere curve?

Yes it does.

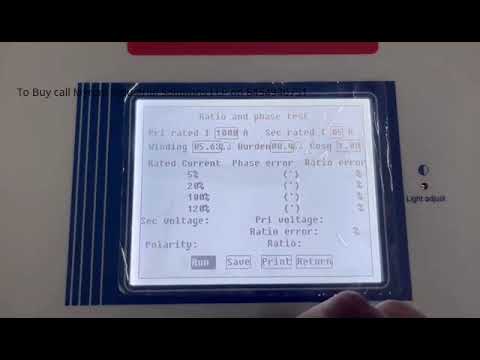

Some of the features can be viewed in this video.
