Single Phase Relay Test Set (MT 2000)


Single Phase Relay Test Set (MT 2000)

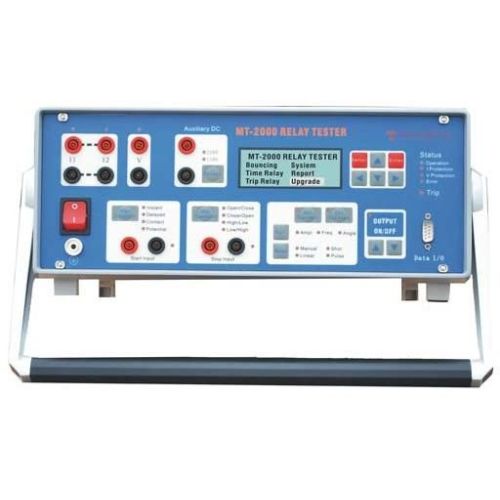

Based in Maharashtra we are exporter and supplier of Single Phase Relay Test Set( MT2000). Our Single Phase Relay Test Set is portable system facilitating both manual and automatic operations. The Single Phase Relay Test Set features readymade test modules that ensure independent control of phase angle, frequency and amplitude. In addition, it is efficient in testing differential. df/dt  relays too!  Moreover , our Single Phase Relay Test facilitates PC control through MTWIN software. Further MT2000 is supplied with standard  accessories like connectors and canvas carry bag.

Hardware Configuration :

  • 2x 30A or 2 X 60 a, 1 X 150V Independent and Isolated generators. Aux dc  110V/ 220V
  • One Start Input, One Stop Input



Product specifications :

  • Current Generators
    • Setting range : 2 x 0-30A(or 2 x 60A) AC
    • Power : 2 x 250VA(or 2 x 400VA for 2 x60A version) max
    • Resolution : 1 mA (2 mA for 60A version)
    • Error : 0.2% of setting value or 0.04% of range whichever is higher
    • Distortion : ≤0.5%



  • Voltage generator :
    • Setting range :  1 x 0-150V ac or 1 x ±212 V dc
    • Power : 50 VA max or 80 W max
    • Resolution : 5 mV
    • Error : 0.2% of setting value or 0.04% of range whichever is higher
    • Distortion : ≤0.5%
    • Aux dc output : Fixed 220V/110V/Off
    • Power : 80 W max



  • Binary inputs :
    • Start input : 1 no
    • Trigger mode : Instant/ delayed/ dry contact/ wet contact
    • Stop input :  1no
    • Trig mode : NO-NC/NC-NO/Hi-Lo/Lo-Hi
    • Resolution : 50 micro sec
    • Max measuring time : 419 s
    • Trigger range : 24-V -250V dc
  • Frequency :
    • Range : DC-1 KHZ
    • Resolution : 0.001 Hz
    • Accuracy : 0.01%



  • Phase angle :
    • Range : 0-360 deg
    • Resolution : 0.05 deg
    • Accuracy : 0.2 deg



  • Interface :
    • PC- DATA TRANSFER : RS 232 Front side
    • PC CONTRO L : RS232 rear side
    • Ground socket : 4 mm banana socket.



  • General
    • National standard : DL/T624-1997
    • Supply voltage : 110 V ac- 265 ac
    • Supply frequency ; 45-65 Hz
    • Operating temperature : 5- 50 deg
    • Humidity : 95% non condensing
    • Weight : 8.5 kg
    • Dimensions : 470x 150x 263 mm
